Geotextile Production Line

Huakai's LYBG101-480 needle-punched geotextile line produces separation, filtration, drainage and reinforcement geotextiles for road and railway construction, highway subgrade, landfill lining and erosion control. Finished width 4,600 mm, fabric weight 80–800 gsm, output 250–350 kg/h.

Typical Applications

Huakai geotextile needle punching production line

Line Layout & Process Flow

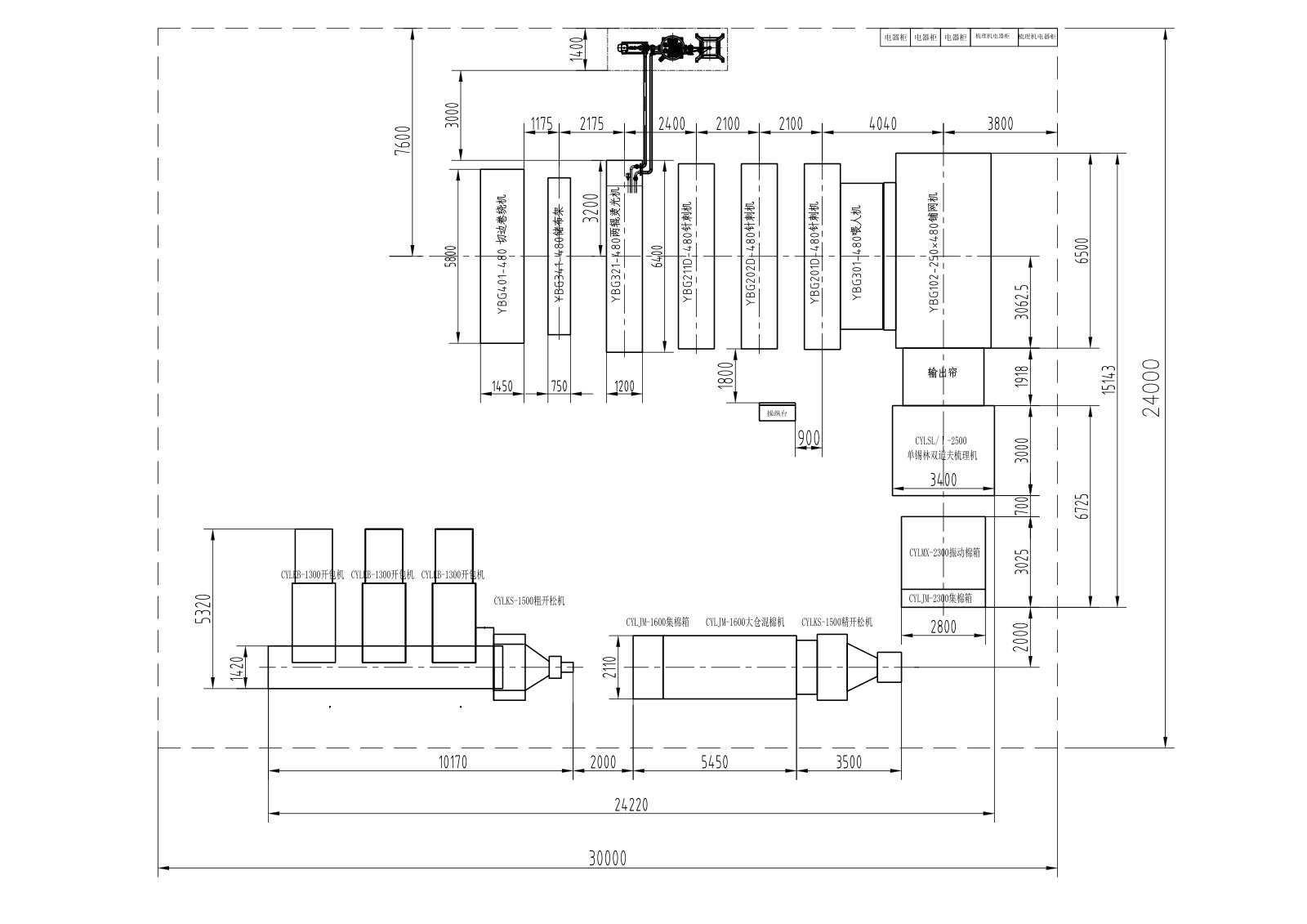

Huakai LYBG101-480 geotextile line — plant layout drawing

Plant layout — LYBG101-480 geotextile line

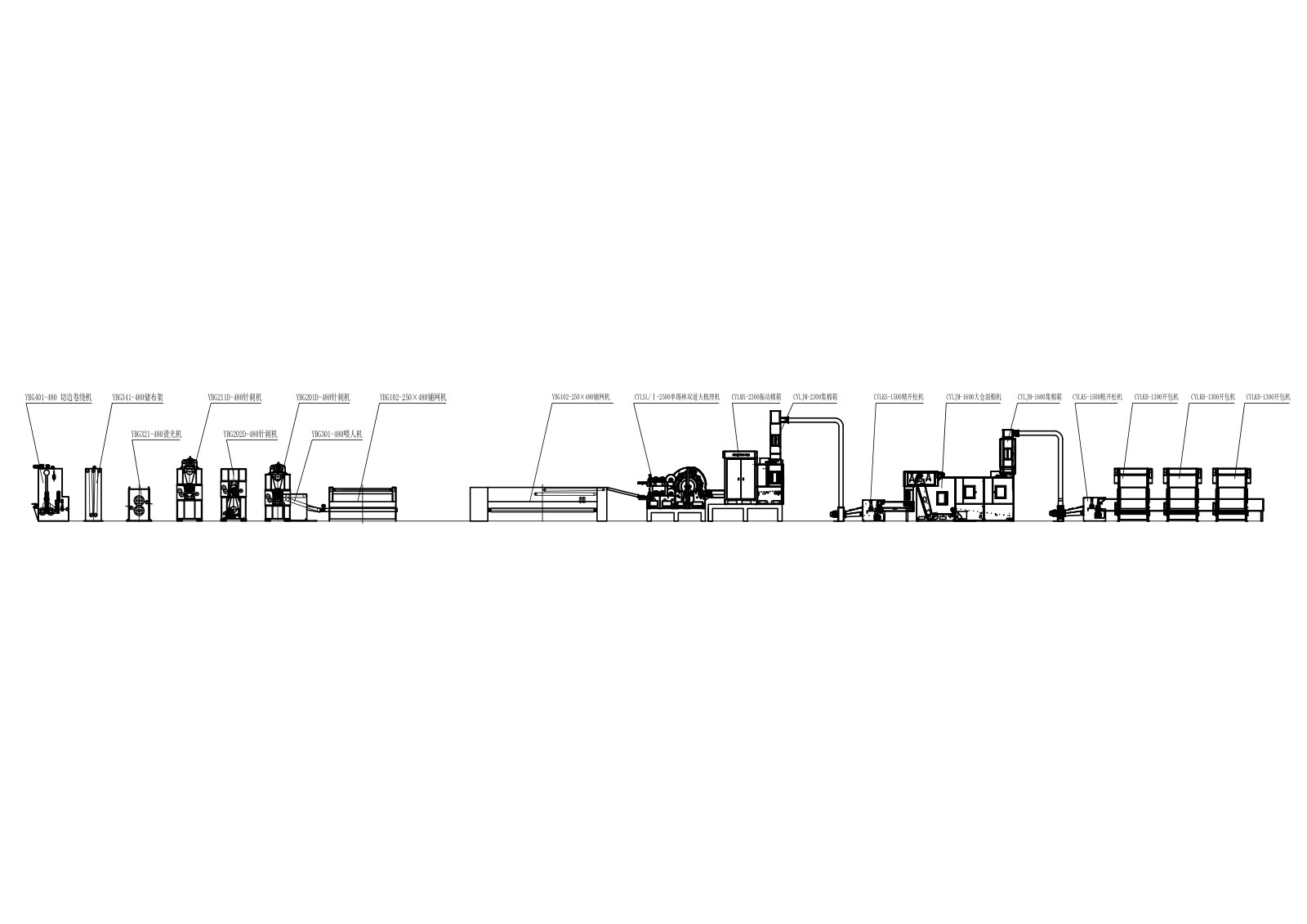

Huakai LYBG101-480 geotextile line — process flow diagram from fibre opening to finished roll

Process flow — from fibre opening to finished roll

Technical Specifications — LYBG101-480

Main parameterValue
Carding output width2500 mm
Lapping output width4800 mm
Finished product width4600 mm
Material weight80 ~ 800 g/m²
Production speed0.5 ~ 6 m/min
Production output250 ~ 350 kg/h
Power capacity162 kW (excluding calender)
Fibres processedPE, PET, PP, aramid, polyamide
Request a quote

Line Configuration

Bale Opener CYLKB-1300 ×3 · Willowing CYLKS-1500 · CYLJM-1600 · Cabinet Blending CYLMX-2300 · Carding CYLSL/Ⅰ-2500 · Cross Lapper YBG102-250×480 · Feeder YBG301-480 · Pre-needle YBG201D-480 · Needle YBG202D-480 / YBG211D-480 · Storage Rack YBG341-480 · Cutting & Winding YBG401-480 · Control Cabinet.

Why Huakai geotextile lines

Every line is engineered around your fibre, fabric weight and required capacity. Contact us for a quotation tailored to your material, working width and line speed.
