Needle-punched Filtration Line

Huakai's LYBG102-260 needle-punched filtration line produces needled filter media for baghouse dust collector bags, air filtration and liquid filtration. Finished width 2,300 mm, fabric weight 80–800 gsm, output 250–350 kg/h, running PP, PET, PPS and PTFE fibres.

Typical Applications

Huakai needle-punched filtration production line

Line Layout & Process Flow

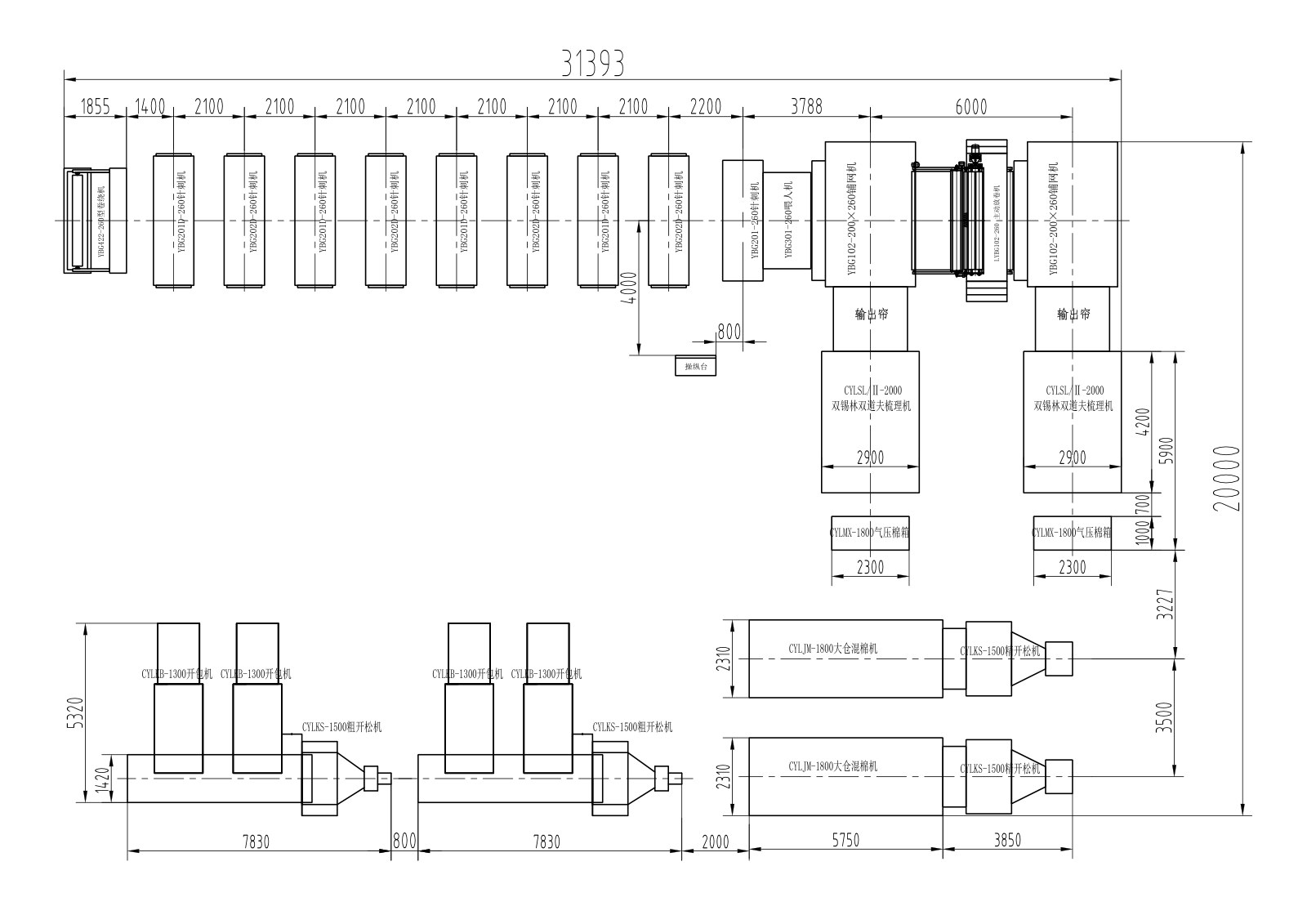

Huakai LYBG102-260 needle-punched filtration line — plant layout drawing

Plant layout — LYBG102-260 needle-punched filtration line

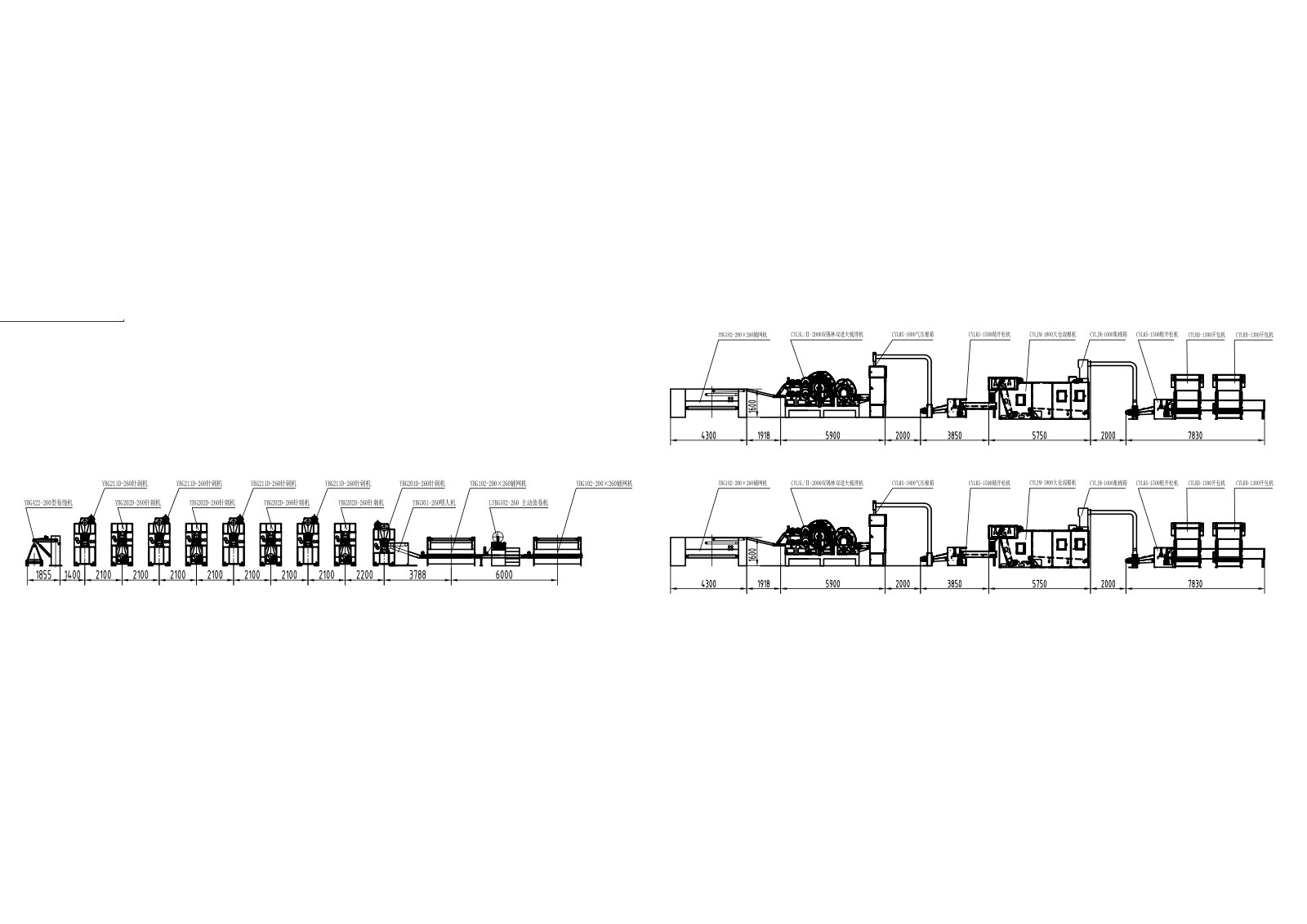

Huakai LYBG102-260 needle-punched filtration line — process flow diagram from fibre opening to finished roll

Process flow — from fibre opening to finished roll

Technical Specifications — LYBG102-260

Main parameterValue
Carding output width2000 mm
Lapping output width2600 mm
Finished product width2300 mm
Material weight80 ~ 800 g/m²
Production speed0.5 ~ 6 m/min
Production output250 ~ 350 kg/h
Power capacity382 kW
Fibres processedPE, PET, PP, aramid, polyamide
Request a quote

Line Configuration

Bale Opener CYLKB-1300 ×4 · Willowing CYLKS-1500 ×2 · CYLJM-1800 ×2 · Cabinet Blending CYLMX-1800 ×2 · Carding CYLSL/Ⅱ-2000 ×2 · Cross Lapper YBG102-200×260 ×2 · Winding LYBG102-260 · Feeder YBG301-260 · Pre-needle YBG201D-260 · Needle YBG202D-260 / YBG211D-260 ×4 · Cutting & Winding YBG422-260 · Control Cabinet.

Why Huakai filtration lines

Every line is engineered around your fibre, fabric weight and required capacity. Contact us for a quotation tailored to your material, working width and line speed.
