The final stage of the line — cutting, winding and storing finished nonwoven rolls. Light and heavy versions cover 50~2000 g/m² materials.

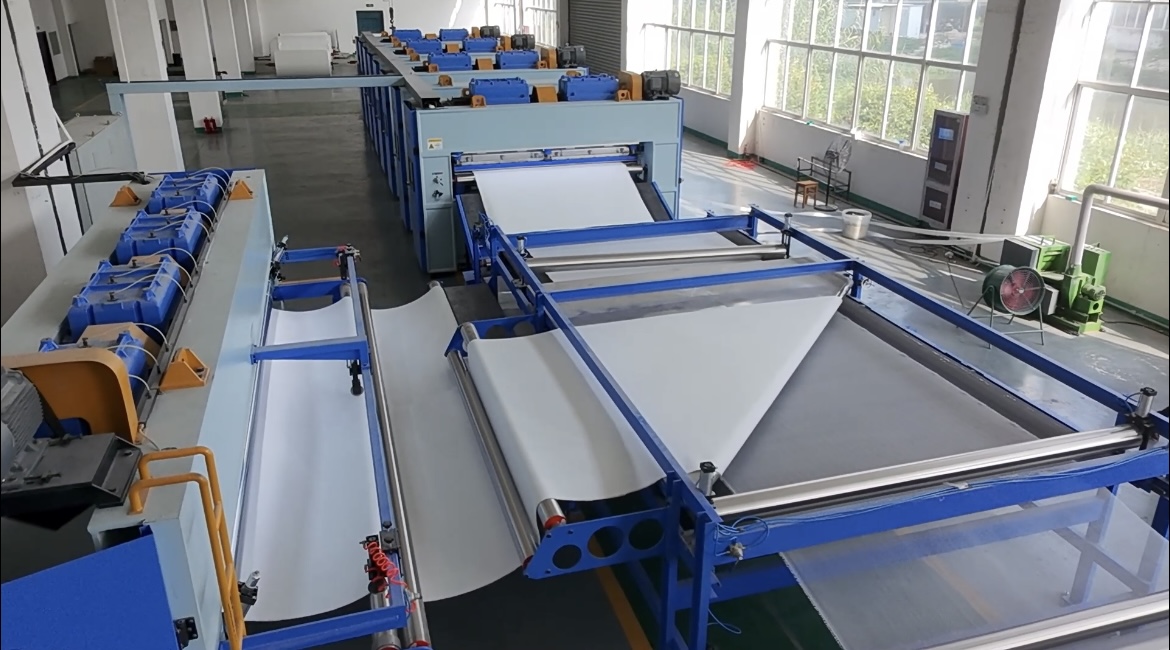

For light-weight materials, with three longitudinal circular knives.
| Specification | Value |
|---|---|
| Cutting width | 2600 / 4000 / 6000 mm |
| Roll diameter | 320 / 350 / 400 mm |
| Power | 0.75 / 1.5 / 2.2 kW |
| Material weight | 50 ~ 500 g/m² |
| Speed | 1.5 ~ 8 m/min |

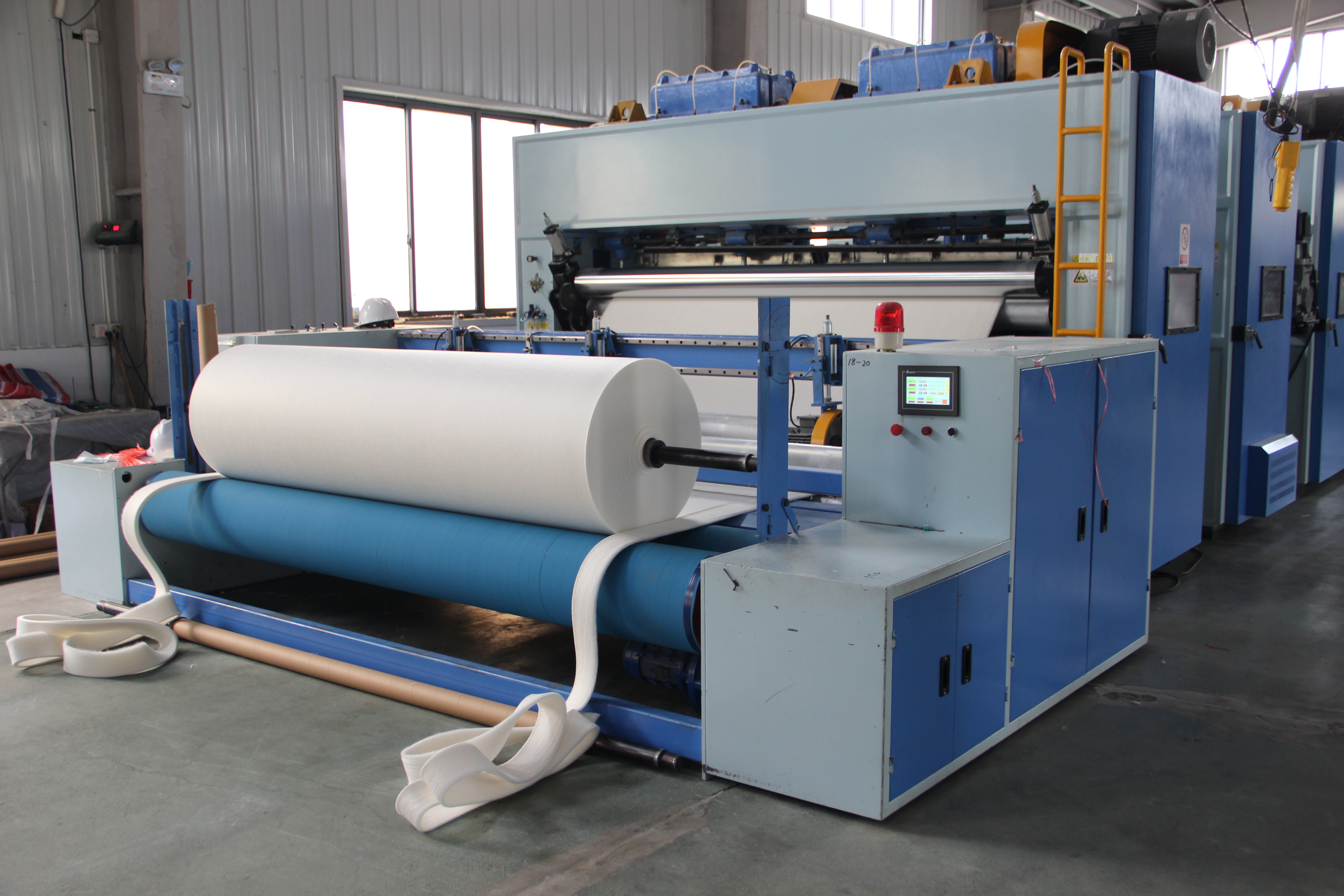

For heavy-weight materials, with three longitudinal circular knives.
| Specification | Value |
|---|---|
| Cutting width | 2600 / 3800 / 5200 mm |
| Roll diameter | 320 / 350 / 400 mm |
| Power | 1.5 / 2.2 / 3.5 kW |
| Material weight | 500 ~ 2000 g/m² |
| Speed | 0.5 ~ 5 m/min |

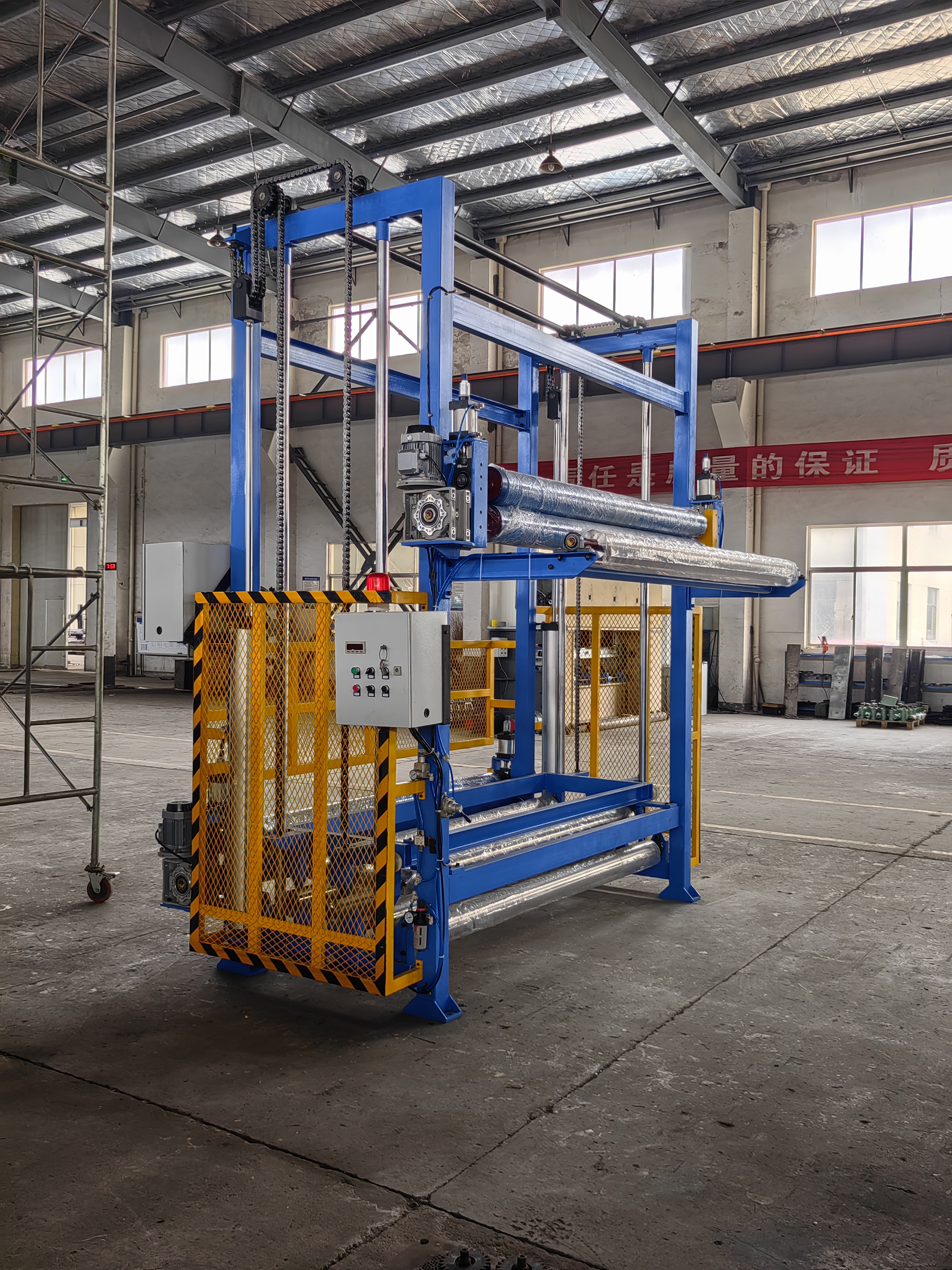

Buffer storage rack between needle punching and cutting for continuous operation.
| Specification | Value |
|---|---|
| Working width | 4800 mm |
| Height | 2500 mm |
| Drive | Non-motor (free roller) |
